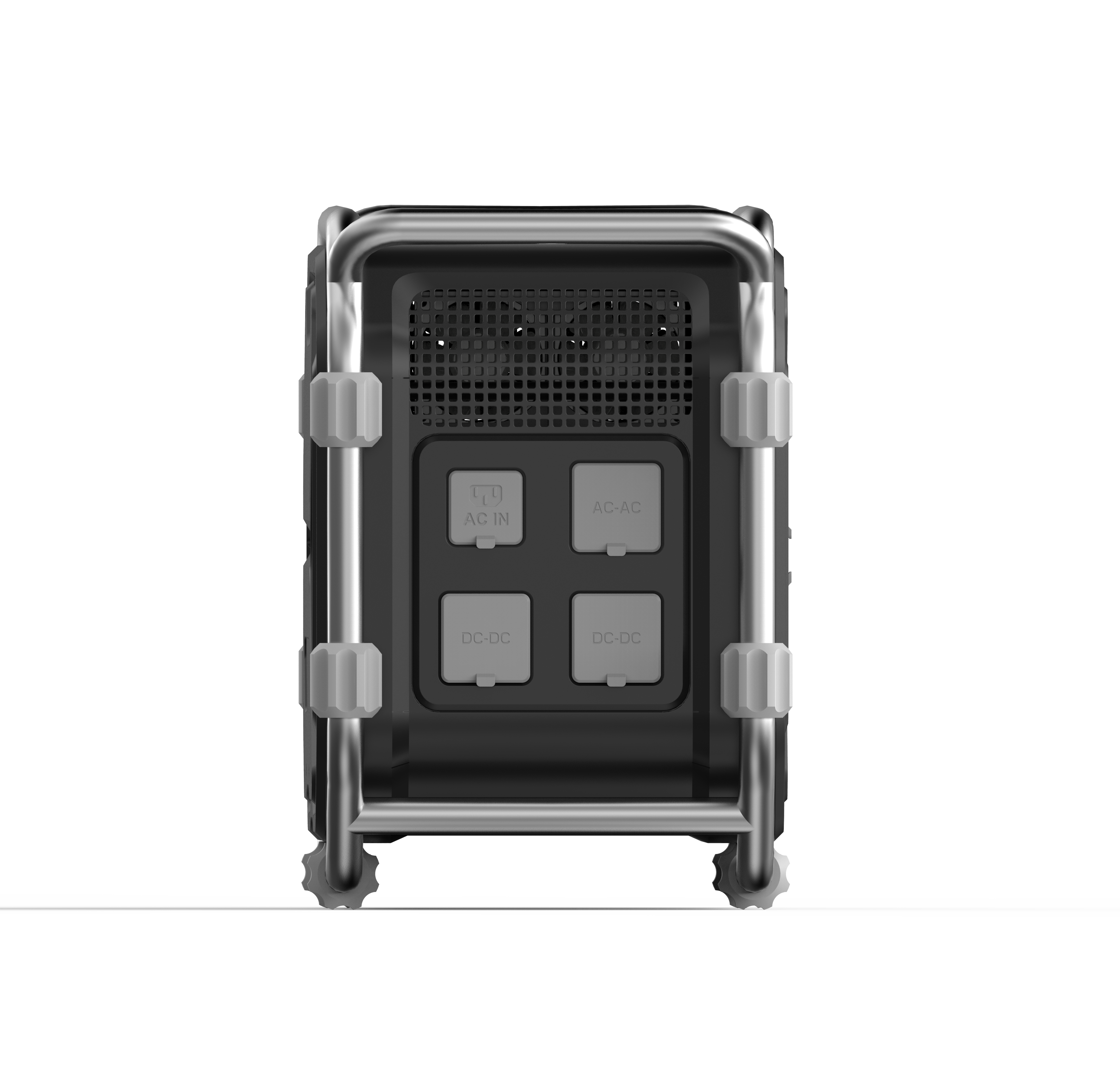

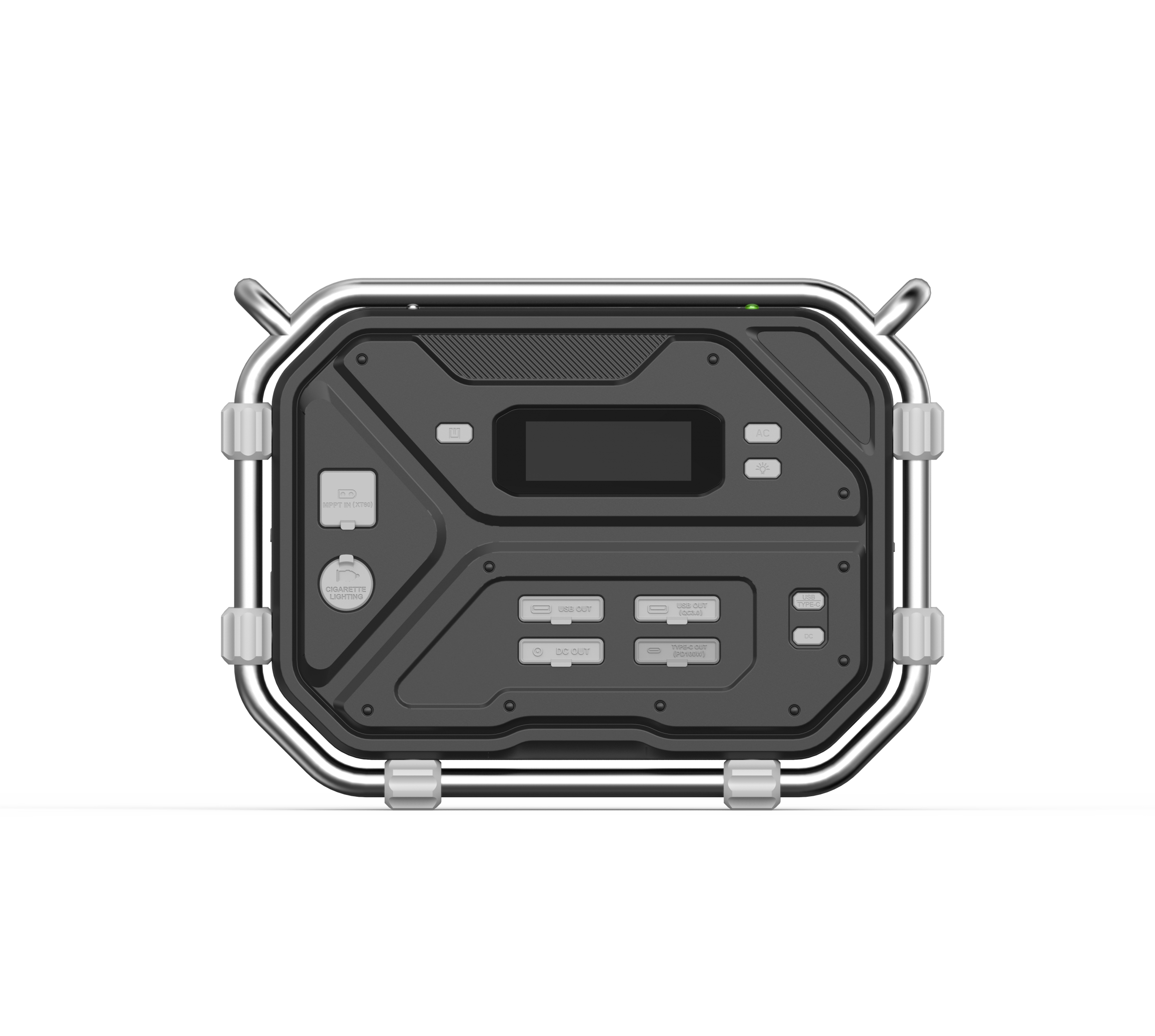

YH2400

A portable power station is a battery powered device that can provide power to various small electrical and electronic devices. It is essentially a large battery that can be charged and used to power or charge other devices, such as smartphones, laptops, cameras, and even small TVs or mini refrigerators. Portable power stations are typically used for camping or outdoor activities, emergency preparedness, or any place that requires power but does not have a ready-made outlet. They are usually equipped with various sockets, including USB ports, standard AC power sockets, and sometimes even DC power sockets for certain appliances or devices. The capacity of portable power stations is measured in watt hours (Wh), indicating how much electricity can be provided in a certain period of time. For example, a power station with a capacity of 600Wh can theoretically supply power to equipment using 600 watts for one hour, or to equipment using 60 watts for ten hours.
Message Contact Us
Details

Rated capacity: 2508.8Wh, 16 strings, 2 parallel units, 24.5Ah

Battery: BYD Lithium Iron Phosphate Battery Cells

Voltage: 51.2V

Rated power: 2000W sine wave (bidirectional inverter) AC peak power: 4800W

AC output * 4:220V 50Hz (maximum 2400W) 110V 60Hz (maximum 2000W) (frequency adaptive)

DC function:

PD1 (type c) output: 5Vdc-3A/9Vdc-3A/12Vdc-3A/15Vdc-2A/20Vdc=2A (maximum 40W)

PD2 (type c) output: 5Vdc-3A/9Vdc-3A/12Vdc-3A/15Vdc-3A/20Vdc=3A/20Vdc=5A/28Vdc=5A (maximum 140W)

USB-QC output * 4: 5V 3A/9V 2A/12V1.5A (maximum 18W)

DC5521 output * 1:12V5A (maximum 60W)

DC5525 output * 1:24V4.5A (maximum 108W)

Cigarette lighter * 1:12V10A (maximum 120W)

Cigarette lighter+DC5521 (maximum 120W)

PD1+PD2+USB1+USB2+USB3+USB4 Maximum power 252W (according to PD protocol)

XT60 input: 25-145V (maximum 1500W) supports MPPT charging mode

AC port charging input: mains 110V/120V (800-1500W) default to 1500W

Battery display: LCD screen

Balcony photovoltaic mode: Supports off grid connection: Supports

LED lighting+Y ambient lighting mode approximately 3W

Weight: Net weight 25.45kg/Gross weight 28.55kg

Size: 502x255x378mm

UN carton size: 630 * 352 * 536mm

Battery cycle life: ≥ 4000 cycles/70% DOD@25 ℃

Operating environment temperature: -15 ℃ to 45 ℃

Storage temperature: -10 ℃ to 60 ℃

Accessories: Instruction manual * 1 certificate of conformity * 1 AC charging cable * 1

Charging time: 1.7 hours
