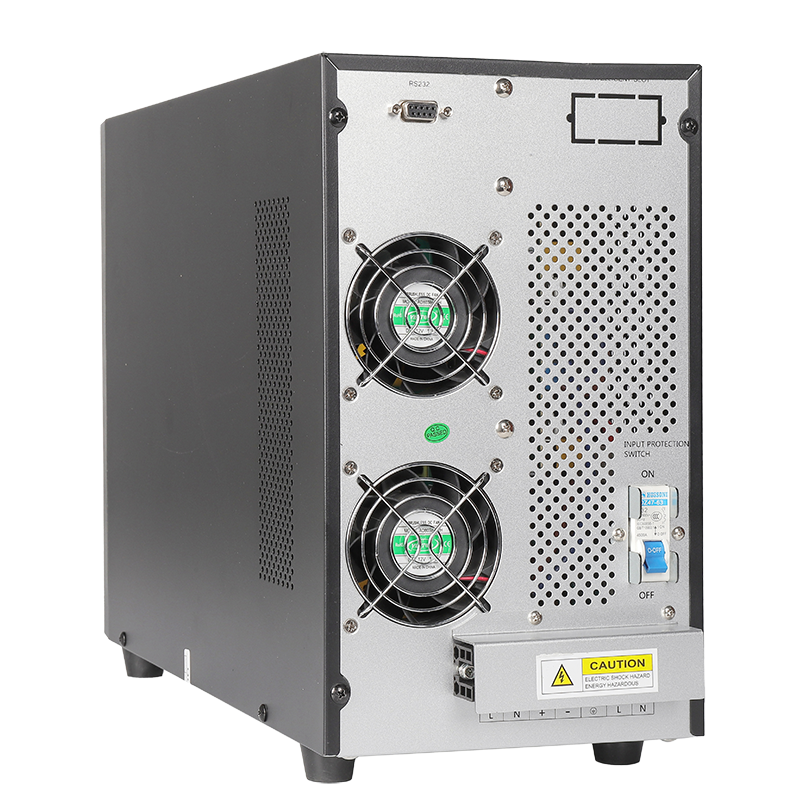

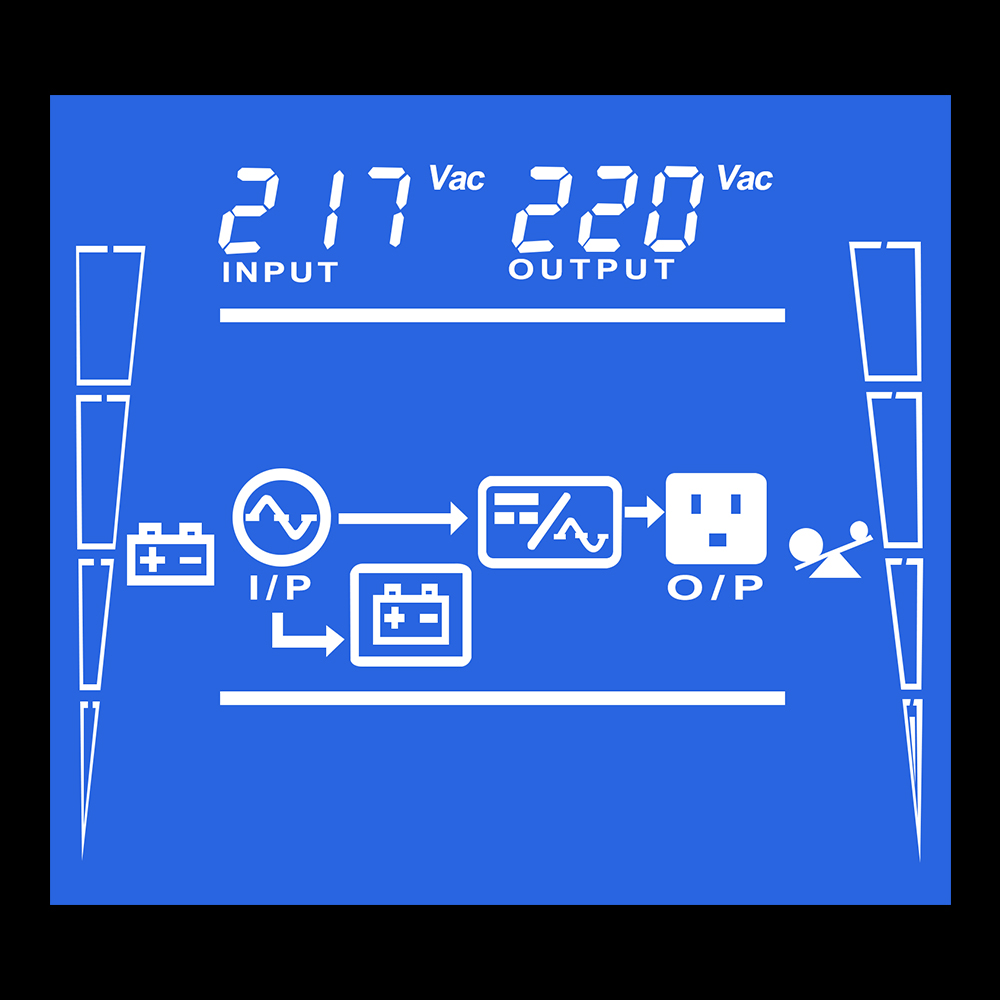

YH-H11-10-20KL LCD

High-frequency online YH-H31 series 20KL
SC8110-8310 series 6-30KVA UPS power supply adopts advanced DSP digital control technology, powerful adaptability, flexible configuration, and fully meets the high reliability requirements of computer room servers and precision equipment.

Product features
1. Output power factor 0.8, more suitable for the development trend of load
2. The overall efficiency is as high as 90%, reducing the power loss of UPS
3. Intelligent battery management, extending battery life
4. Wide input voltage range, can adapt to harsh power grid environment
5. Can safely perform online maintenance under continuous power supply of load (optional)
6. Rich communication and monitoring, understand the power status anytime and anywhere

Message

Details

Product Model	YH-H31-20KL
Rated Output Capacity	20KVA/16KW
Rated Voltage	380VAC
AC Input Rated Frequency	50Hz
AC Input Voltage Range	305~478VAC
AC Input Frequency Range	(45~55)±0.5Hz
AC Input Bypass Voltage Range	190~520VAC
Battery Pack Voltage	Standard 192VDC (can be customized to 240VDC according to user requirements)
Battery Capacity × Quantity	External 12V×16 (can be customized to 20 cells according to user requirements)
Charging Current	4A
AC Output Voltage	220VAC±1% (inverter output)
AC Output Frequency	46~54Hz (when AC input is normal) 50Hz±1% (when AC input is abnormal)
AC Output Waveform	Sine wave THD＜3% (linear load) Sine wave THD＜8% (non-linear load)
AC Output Power Factor	0.8
AC Output Overload Capacity	105~125% 1 minute later switch to bypass

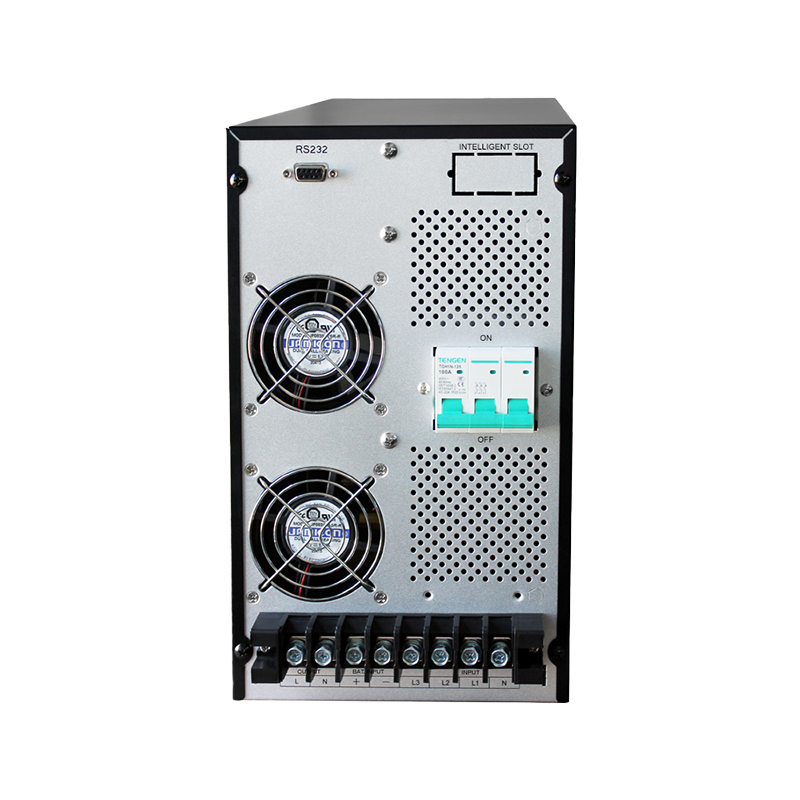

Communication and Monitoring Function	RS232 (can be converted to 485), dry contact, intelligent slot (can be expanded to support various monitoring methods such as SNMP, SMS, etc.)
Weight (KG)	25.5
Dimensions (W×D×H) mm	248×620×500
Weight (KG)	8.5
Dimensions (W×D×H) mm	355×145×225
