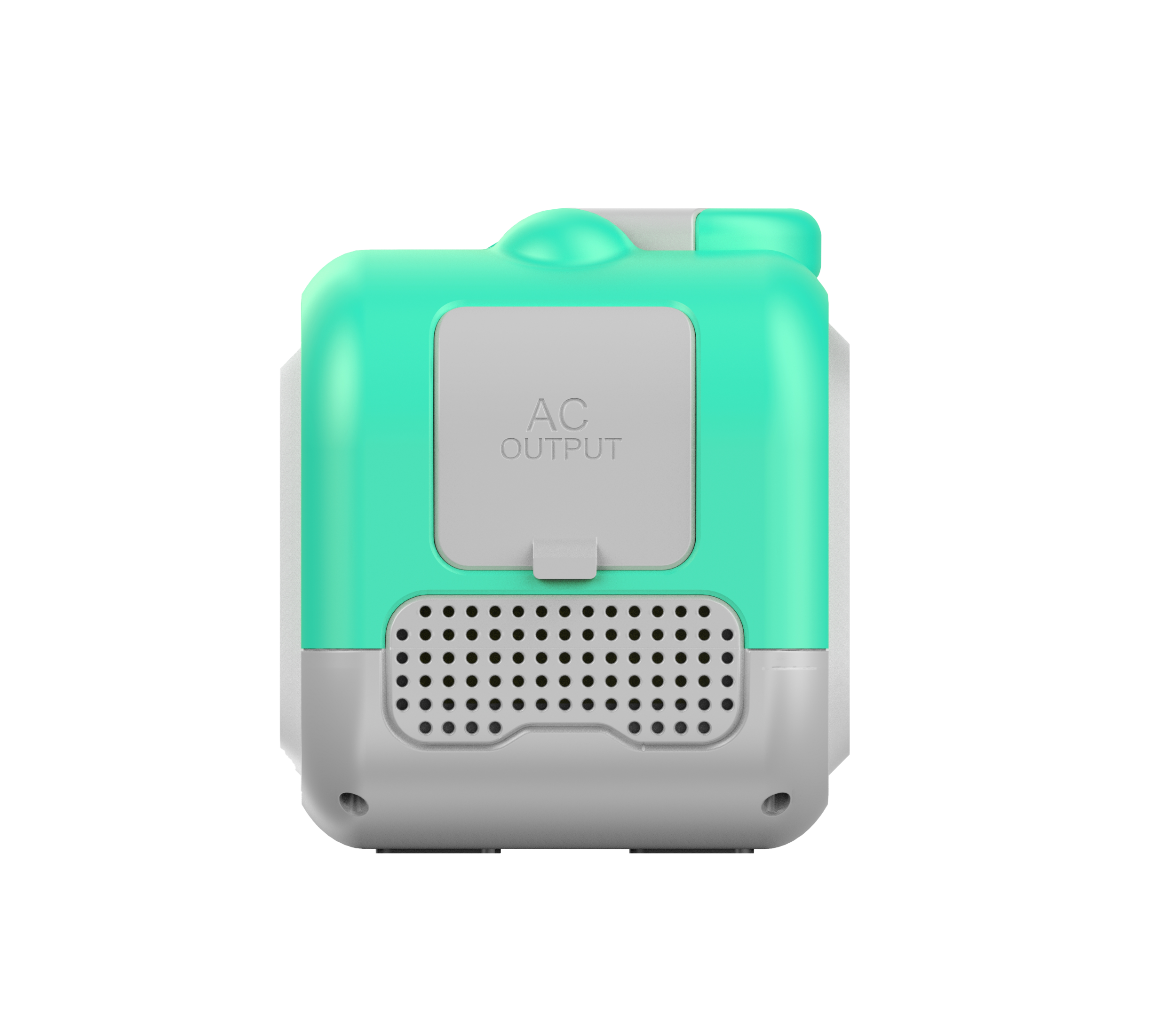

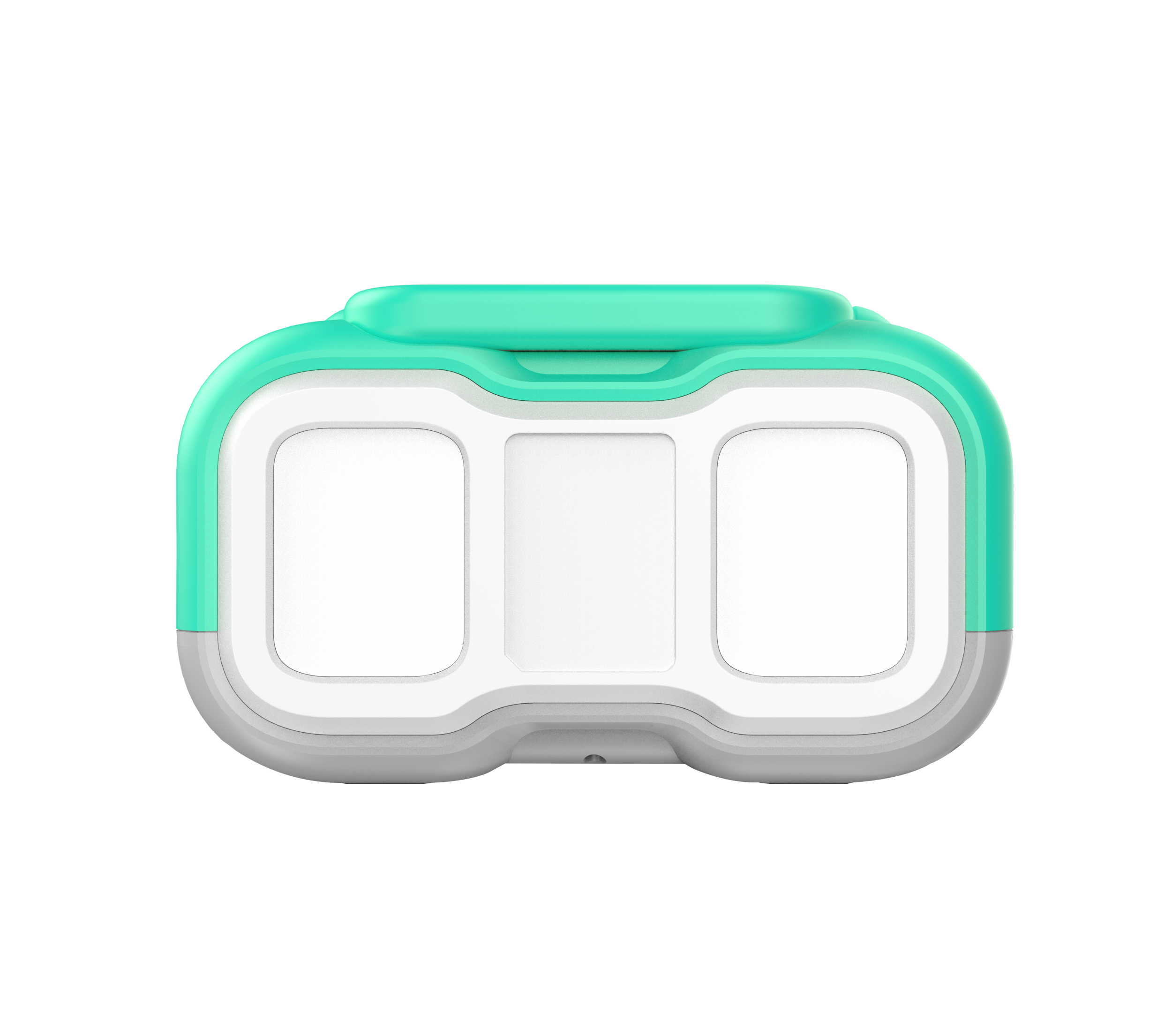

YH300S

A portable power station is a battery powered device that can provide power to various small electrical and electronic devices. It is essentially a large battery that can be charged and used to power or charge other devices, such as smartphones, laptops, cameras, and even small TVs or mini refrigerators. Portable power stations are typically used for camping or outdoor activities, emergency preparedness, or any place that requires power but does not have a ready-made outlet. They are usually equipped with various sockets, including USB ports, standard AC power sockets, and sometimes even DC power sockets for certain appliances or devices. The capacity of portable power stations is measured in watt hours (Wh), indicating how much electricity can be provided in a certain period of time. For example, a power station with a capacity of 600Wh can theoretically supply power to equipment using 600 watts for one hour, or to equipment using 60 watts for ten hours.

Message

Details

Rated capacity: 327.68Wh, 4 strings, 1 parallel unit, 25.6Ah

Battery: BYD Lithium Iron Phosphate Battery Cell (25600mAh)

Voltage: 12.8V

Rated power: 300W pure sine wave AC peak power: 600W

AC output * 1:220V 50Hz 110V 60Hz maximum 300W

DC function:

USB-QC output * 2 5V 3A/9V 2A/12V1.5A (maximum 18W)

PD1 (type c) output: 5Vdc-3A/9Vdc-3A/12Vdc-3A/15Vdc-3A/20Vdc=5A (maximum 100W) bidirectional

PD2 (type c) output: 5Vdc-3A/9Vdc-3A/12Vdc-3A/15Vdc-3A/20Vdc=3A (maximum 60W) bidirectional

USB1+USB2 output: 5Vdc-2A (maximum 10W)

USB3+USB4 output: 5V2A, maximum 10W

USB1+USB2+TYPE-C1+TYPE-C2 output ports, as long as any two or more are simultaneously output, will be reduced to 5V2A * 4 for ordinary A ports, with a maximum of 40W

5521 port output * 1:12V 5A maximum 60W

5521 input * 1:12-24V maximum input power 100W (MPPT charging mode, car charging mode)

PD IN (type c): Maximum 100W (according to the protocol below) "PD output is not supported when charging using PD port"

The product supports simultaneous charging of DC IN and PD100W, with a maximum power of 200W

Battery display: LCD screen

LED light: Approximately 3W

Weight: Net weight 3.5kg/Gross weight 4.5kg

Size: Approximately 256 * 135 * 153mm

Packaging size: 299x178x240mm

Battery cycle life: ≥ 4000 cycles/70% EOL@25 ℃

Operating environment temperature: -15 ℃ to 45 ℃

Storage temperature: -10 ℃ to 60 ℃
