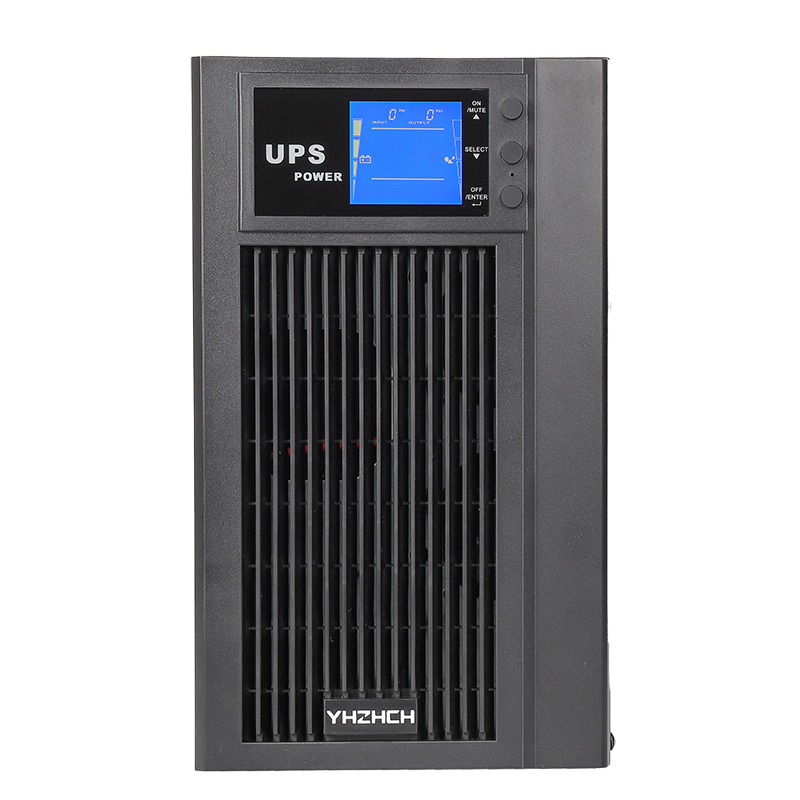

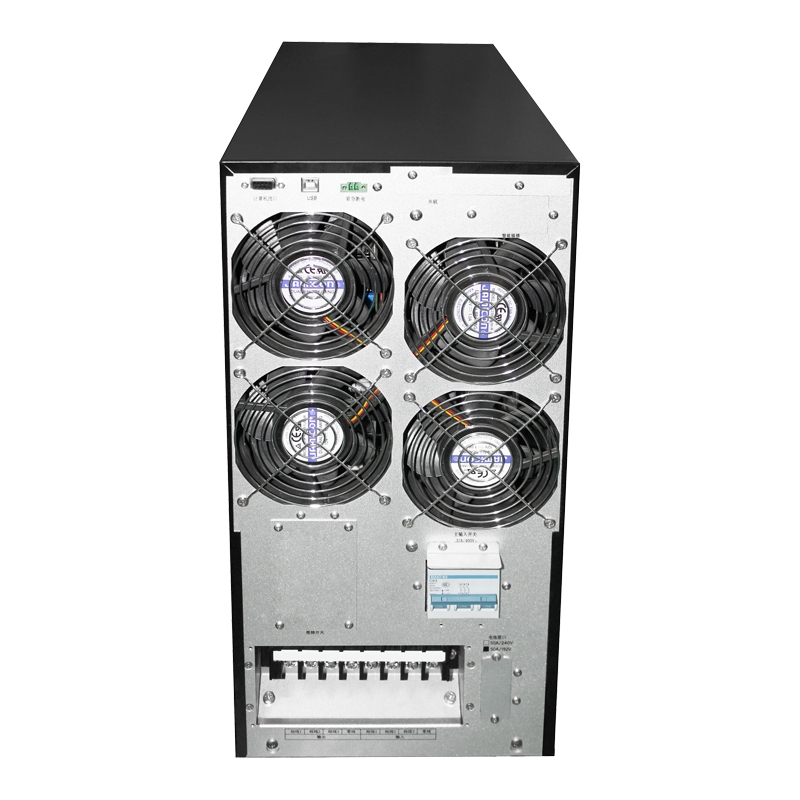

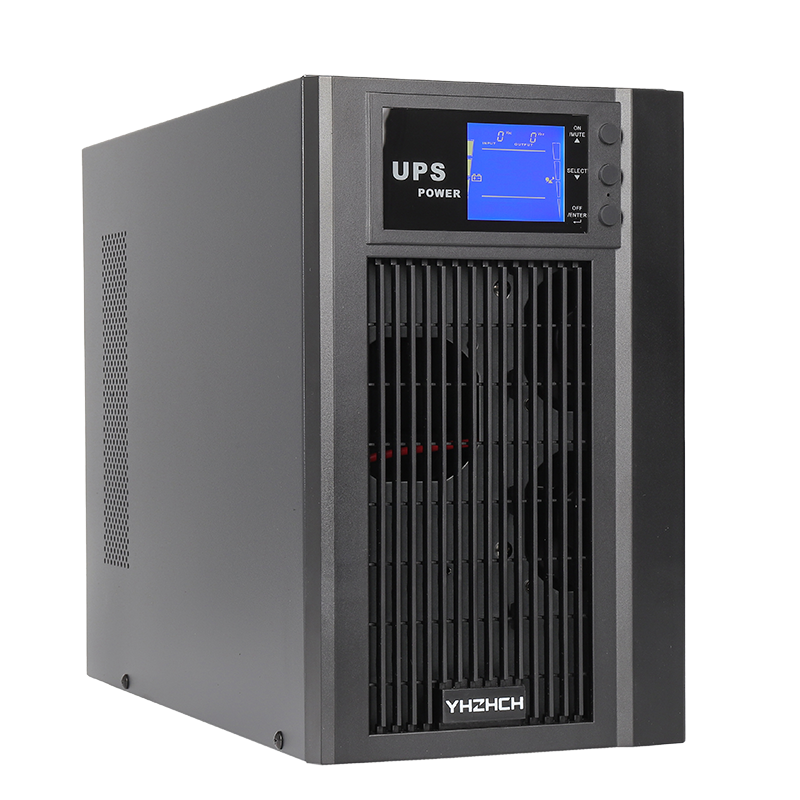

YH-H33-40KL LCD

High-frequency online YH-H33 series 40KL
1. Truly realize high-frequency online double conversion 2. High-performance machine using DSP technology 3. Output power factor can reach 0.84. The number of batteries can be adjusted between 16-20 5. Charging current (0.5-6A) can be adjusted through LCD and software 6. Single-phase wide AC input range (110-300VAC) 7. Emergency power off (EPO) 8. ECO mode provides energy saving effect 9. Three-phase input includes power factor correction 10. Three-stage expandable charging design ensures better performance of the battery 11. N+X parallel redundancy application 12. Widely used in finance, telecommunications, government, transportation, manufacturing, education and other industries

Product Features
1. Truly realize high-frequency online double conversion
2. High-performance machine using DSP technology
3. Output power factor can reach 0.9
4. The number of batteries can be adjusted between 16-20
5. The charging current (0.5-6A) can be adjusted through LCD and software
6. Single-phase wide AC input range (110-300VAC)
7. Emergency power off (EPO)
8. ECO mode provides energy saving effect
9. Three-phase input includes power factor correction
10. Three-stage expandable charging design ensures better performance of the battery
11. N+X parallel redundant application
12. Widely used in finance, telecommunications, government, transportation, manufacturing, education and other industries

Message

Details

Product Model	YH-H33-40KL
Rated Output Capacity	40KVA
Rated Voltage	380VAC
AC Input Rated Frequency	50Hz
AC Input Voltage Range	305~478VAC
AC Input Frequency Range	46~54Hz or 56~64Hz
AC Input Bypass Voltage Range	190~520VAC
Battery Pack Voltage	Standard 192VDC (can be customized to 240VDC according to user requirements)
Battery Capacity × Quantity	External 12V×16 (can be customized to 20 cells according to user requirements)
Charging Current	4A
AC Output Voltage	220VAC±1% (inverter output)
AC Output Frequency	46~54Hz (when AC input is normal) 50Hz±1% (when AC input is abnormal)
AC Output Waveform	Sine wave THD＜3% (linear load) Sine wave THD＜8% (non-linear load)
AC Output Power Factor	0.9
AC Output Overload Capacity	105~125% 1 minute later switch to bypass
Communication and Monitoring Function	RS232 (can be converted to 485), dry contact, intelligent slot (can be expanded to support various monitoring methods such as SNMP, SMS, etc.)
Weight (KG)	63
Dimensions (W×D×H) mm	815x250x826
Weight (KG)	73
Dimensions (W×D×H) mm	930x390x1070mm
