Product features:

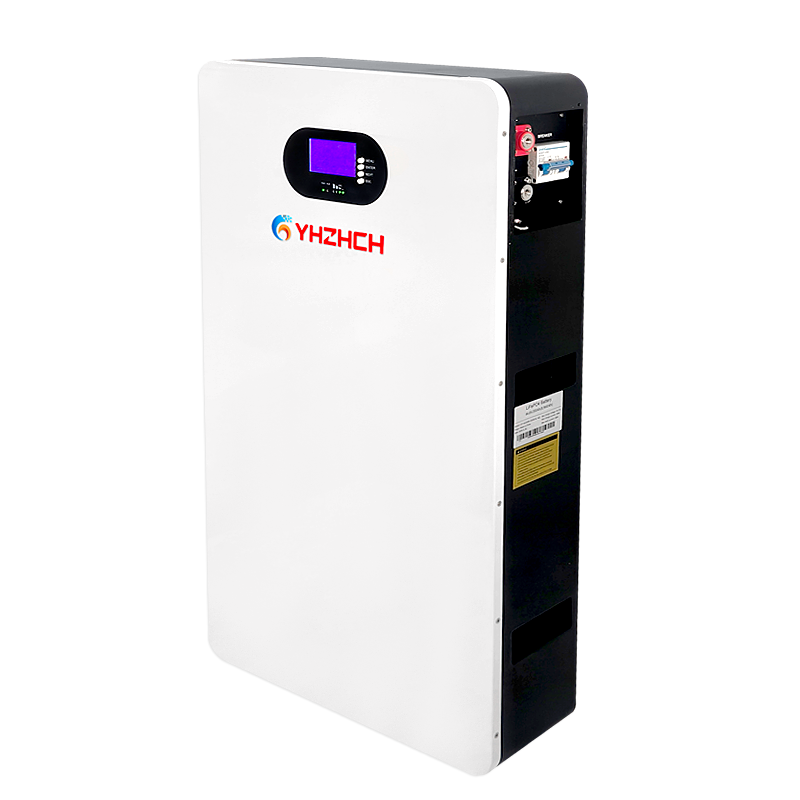

All-In-One(Battery & Inverter)
AC charge + PVcharge
High integration andEasy installation
Support UPS function
| Battery Model | 1.28KWh+1KW | 2.56KWh+3KW | 5.12KWh+5KW | 14.3KWh+11KW |
| Nominal Voltage | 12.8V | 25.6V | 51.2V | 51.2V |
| Rated Capacity | 100Ah | 100Ah | 100Ah | 280Ah |
| Energy | 1.28KWh | 2.56KWh | 5.12KWh | 14.3KWh |
| Inverter Power | 1KW | 3KW | 5KW | 11KW |
| MPPT Voltage Range | 20~100Vdc | 40~450Vdc | 120~430Vdc | 90~450Vdc |
| IP Grade | IP20 | IP20 | IP20 | IP20 |
| Communication | RS485AiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi |
| Size(mm) | 355*220*415mm | 370*225*515mm | 450*270*610mm | 510*377*770mm |
| Weight (kg) | 18kg(about) | 30kg(about) | 51kg(about) | 120kg(about) |
