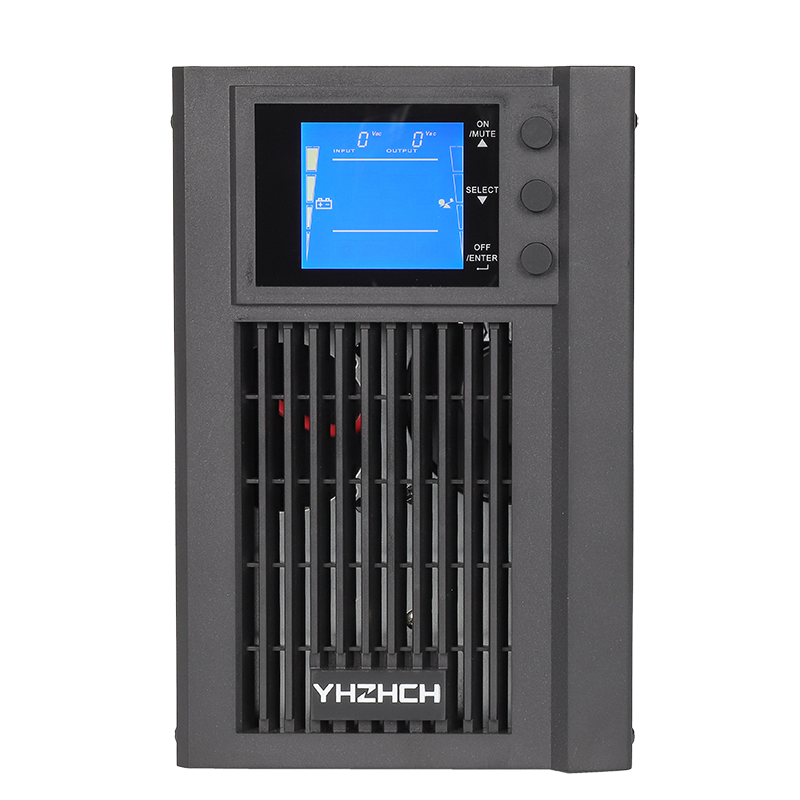

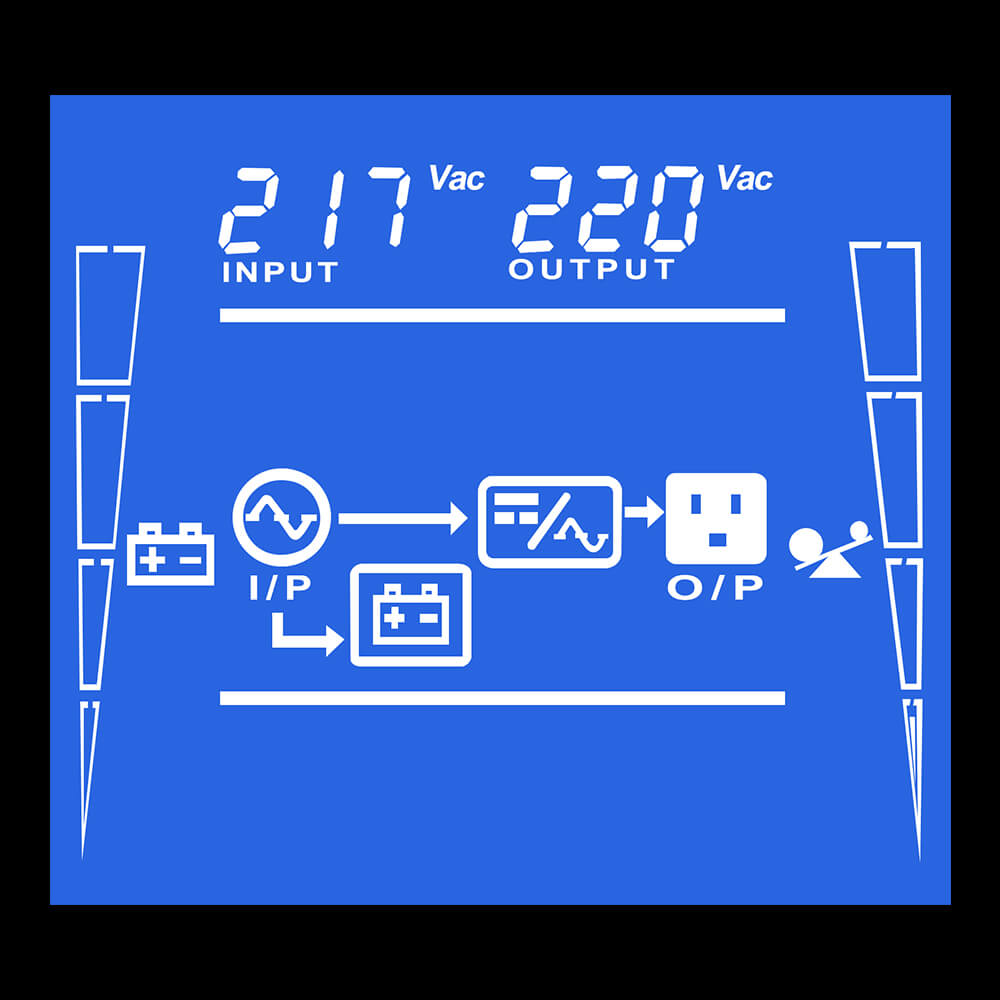

YH-H11-6KL LCD

High-frequency online YH-H11 series 6KL
YH-H11 series 6KVA UPS power supply adopts advanced DSP digital control technology, powerful adaptability, flexible configuration, and fully meets the high reliability requirements of computer room servers and precision equipment.

Product features
1. Output power factor 0.8, more suitable for the development trend of load
2. The overall efficiency is as high as 90%, reducing the power loss of UPS
3. Intelligent battery management, extending battery life
4. Wide input voltage range, can adapt to harsh power grid environment
5. Can safely perform online maintenance under continuous power supply of load (optional)
6. Rich communication and monitoring, understand the power status anytime and anywhere

Message

Details

Product Model	SC8110-6KL
Rated Output Capacity	6KVA/4.8KW
Rated Voltage	220VAC
AC Input Rated Frequency	50Hz
AC Input Voltage Range	120~275VAC±5
AC Input Frequency Range	(45~55)±0.5Hz
AC Input Bypass Voltage Range	80VAC×(1±5%)~285VAC×(1±5%)
Battery Pack Voltage	Standard 192VDC (can be customized to 240VDC according to user's needs)
Battery Capacity × Quantity	External 12V×16 (can be customized to 20 cells according to user's needs)
Charging Current	4A
AC Output Voltage	220VAC±1% (inverter output)
AC Output Frequency	46~54Hz (when AC input is normal) 50Hz±1% (when AC input is abnormal)
AC Output Waveform	Sine wave THD＜3% (linear load) Sine wave THD＜8% (non-linear load)
AC Output Power Factor	0.8
AC Output Overload Capacity	105~125% 1 minute later switch to bypass

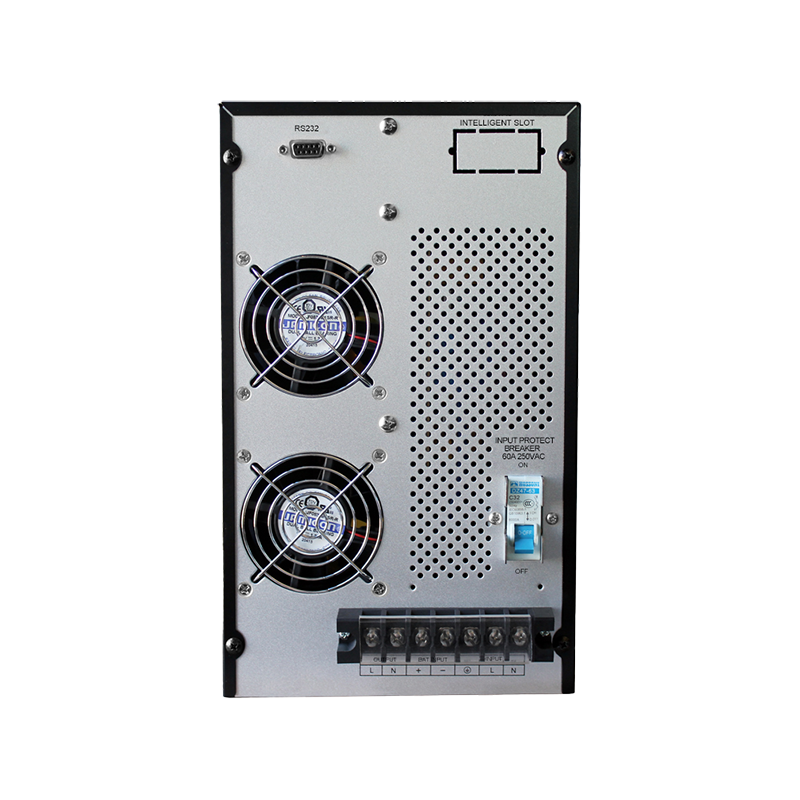

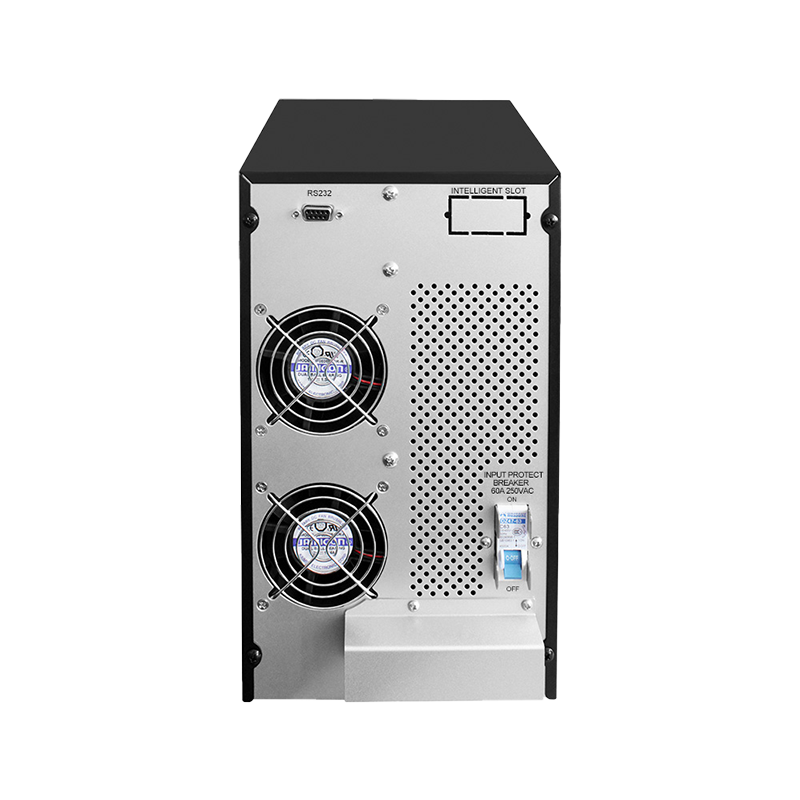

Communication and Monitoring Function	RS232 (can be converted to 485), dry contact, intelligent slot (can be expanded to include various monitoring methods such as SNMP, mobile text messages, etc.)
Weight (KG)	18
Dimensions (W×D×H) mm	248×460×500
Weight (KG)	8.5
Dimensions (W×D×H) mm	355×145×225
