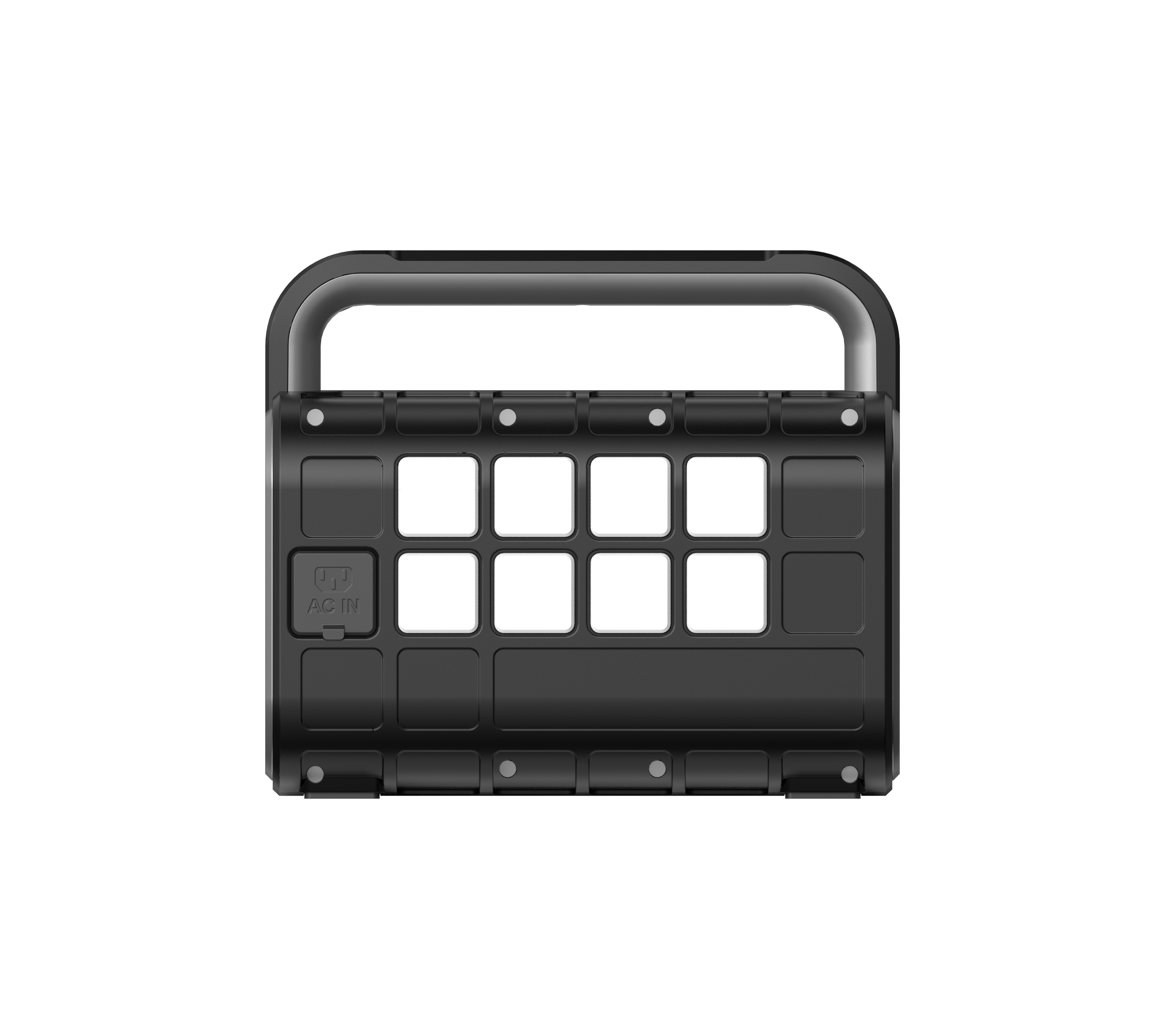

YH600S

A portable power station is a battery powered device that can provide power to various small electrical and electronic devices. It is essentially a large battery that can be charged and used to power or charge other devices, such as smartphones, laptops, cameras, and even small TVs or mini refrigerators. Portable power stations are typically used for camping or outdoor activities, emergency preparedness, or any place that requires power but does not have a ready-made outlet. They are usually equipped with various sockets, including USB ports, standard AC power sockets, and sometimes even DC power sockets for certain appliances or devices. The capacity of portable power stations is measured in watt hours (Wh), indicating how much electricity can be provided in a certain period of time. For example, a power station with a capacity of 600Wh can theoretically supply power to equipment using 600 watts for one hour, or to equipment using 60 watts for ten hours.
Message Contact Us
Details

Rated capacity: 655.36Wh, 8 strings, 1 parallel unit, 25.6Ah

Battery: BYD Lithium Iron Phosphate Battery Cell (25600mAh)

Voltage: 25.6V

Rated power: 600W sine wave (bidirectional inverter) AC peak power: 1200W

AC output * 1:220V 50Hz 110V 60Hz maximum 600W

DC function:

PD1 (type c) output: 5Vdc-3A/9Vdc-3A/12Vdc-3A/15Vdc-2A/20Vdc=2A (maximum 40W)

PD2 (type c) output: 5Vdc-3A/9Vdc-3A/12Vdc-3A/15Vdc-3A/20Vdc=3A/20Vdc=5A (maximum 100W)

USB-QC * 2 output: 5V 3A/9V 2A/12V1.5A (maximum 18W)

5521 output * 2:2 * DC5521 12V5A (maximum 60W)

Cigarette lighter output * 1:12V 10A maximum 120W

Cigarette lighter+DC5521 (maximum 120W)

PD1+PD2+USB1+USB2 maximum power 176W (according to the protocol below)

XT60 input * 1:11-28V maximum 150W (MPPT charging mode, car charging mode)

AC port charging input * 1: maximum input power of 500W

The product supports simultaneous charging and discharging mode

Battery display: LCD screen

LED light * 1 (lighting+ambient light) approximately 3W

Weight: Net weight 7.7Kg/Gross weight 8.3kg

Size: Approximately 297 * 256 * 182mm

Packaging size: 337x230x308mm

Battery cycle life: ≥ 4000 cycles/70% EOL@25 ℃

Operating environment temperature: -15 ℃ to 45 ℃

Storage temperature: -10 ℃ to 60 ℃

Accessories: Instruction manual * 1 certificate of conformity * 1 AC charging cable * 1

Color: Black/Green

Charging time: 1.5 hours
