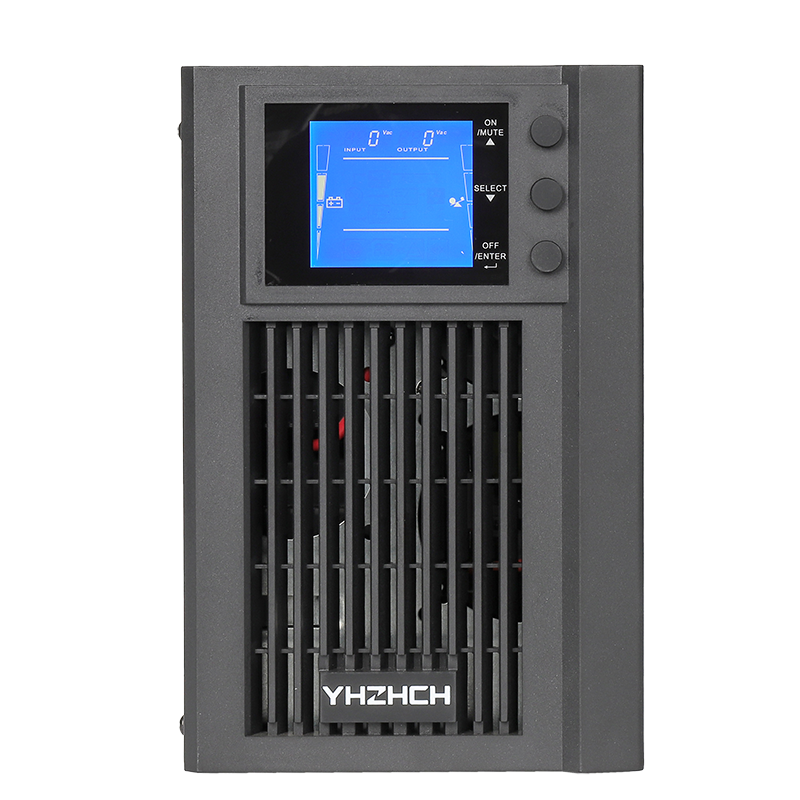

YH-H11--1KL LCD

High-frequency online YH-H11 series 1KL
YH-H11 series 1-3K UPS power supply is specially designed for small and medium-sized enterprise servers, with rack-mounted and tower-type installation methods, online double conversion design, DSP digital technology, pure sine wave, excellent performance, high-end appearance, explaining the integration of cutting-edge technology and traditional products.
Product Features
1. Advanced DSP digital control technology makes UPS performance more stable and quality more superior
2. Load power factor is 0.8, which is suitable for the development trend of electrical equipment and has stronger load capacity.
3. Active input power factor correction (PFC), input power factor is as high as 0.98 or above
4. Wide input voltage and frequency range Extremely wide input voltage and frequency range, suitable for remote areas with very harsh power environment
5. Can be used with generators
6. Zero switching, effectively ensuring the safety and reliability of load operation

Message

Details

Product model

Product Model	YH-H11-1KS
Rated Output Capacity	1000VA/800W
AC Input Voltage Range	115-300VAC±5
AC Input Frequency Range	(45-55)±0.5Hz
AC Bypass Voltage	80VAC×(1±5%)~285VAC×(1±5%)
Battery Pack Voltage	24V
Battery Mode	Built-in Battery
Backup Time (Half/Full)	Half load ≥10 minutes, full load ≥5 minutes
Maximum Inrush Current at Startup	<150% of rated current
Battery Charging Time	5 hours to charge to 90%
AC Output Voltage	220VAC±1% (inverter output)
AC Output Frequency	50±5Hz (normal AC input) 50Hz±1% (abnormal AC input)
AC Output Waveform	Sine wave THD<3% (linear load) Sine wave THD<8% (non-linear load)
AC Output Power Factor	0.8
AC Output Overload Capacity	130% load sustained for no less than 30S, recovery point is 90% load
Output Current Peak Factor	3:01
Utility/Battery Switching Time	0ms

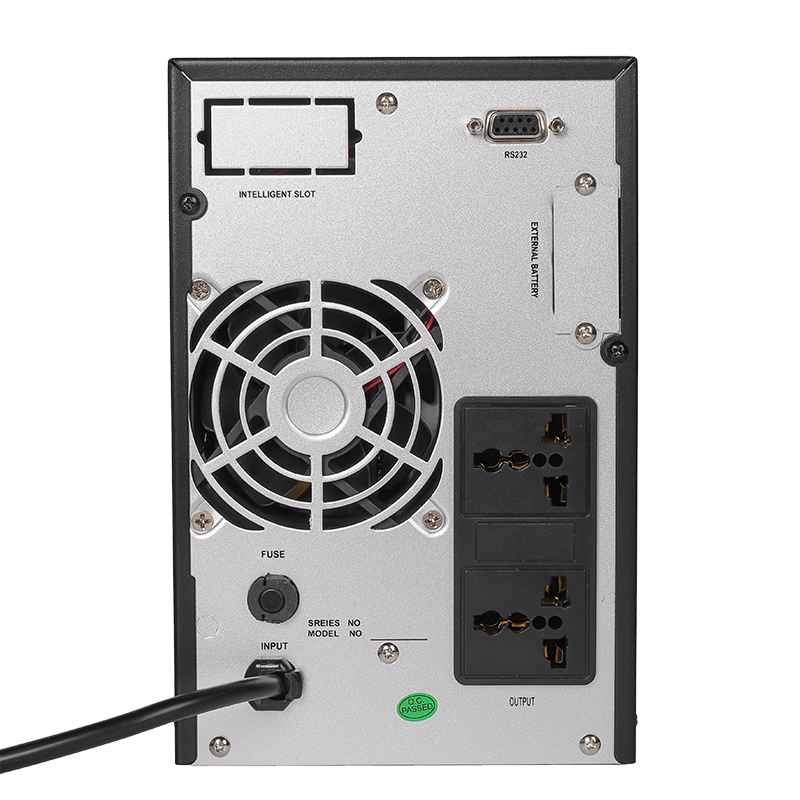

Communication and Monitoring Function	RS232 (can be converted to 485), dry contact, intelligent slot (can expand SNMP, mobile phone text and other monitoring methods)
Weight (KG)	8.5
Dimensions (W×D×H) mm	355×145×225
